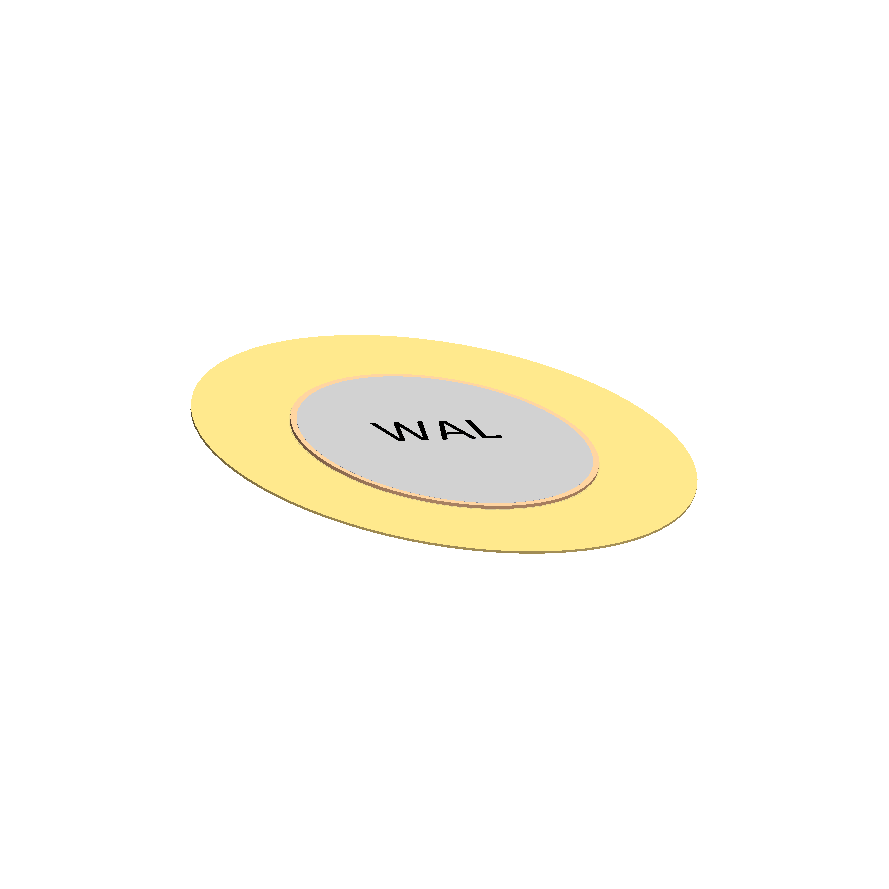

BG4125
- Size: Ø41mm
- Material: Brass plated + Ceramic
- Rated voltage: 12Vp-p square wave
- Operating voltage: 30Vp-p square wave
- Resonant frequency: 4.6 ± 0.5 KHz
- Resonant Impedance: 250Ω maximum
- Capacitance at 100Hz: 45000pF ± 30%
- Dielectric loss: ≤ 5%
- Insulation Resistance: ≥100 at 25V DC
Enquiry more details
Terms
Minimum Order Quantity:
2000 pcs
Lead Time:
20 days
Packing Details
Measurement (L*W*H):
Weight (NW/GW):
Quantity of Carton:
