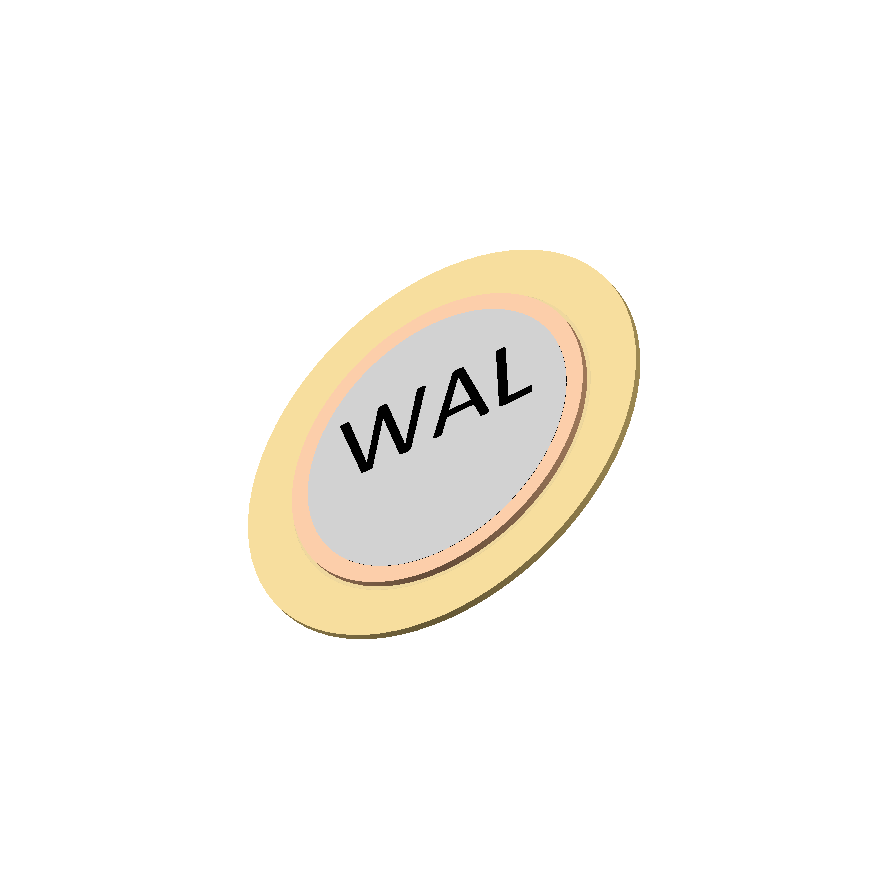

BG1209
- Size: Ø12mm
- Material: Brass plated + Ceramic
- Rated voltage: 12Vp-p square wave
- Operating voltage: 30Vp-p square wave
- Resonant frequency: 18.5 ± 0.5 KHz
- Resonant Impedance: 400Ω maximum
- Capacitance at 100Hz: 5000pF ± 30%
- Dielectric loss: ≤ 5%
- Insulation Resistance: ≥100 at 25V DC
Enquiry more details
Terms
Minimum Order Quantity:
2000 pcs
Lead Time:
20 days
Packing Details
Measurement (L*W*H):
Weight (NW/GW):
Quantity of Carton:
Related products
-
BG2015
- Size: Ø20mm
- Material: Brass plated + Ceramic
- Rated voltage: 12Vp-p square wave
- Operating voltage: 30Vp-p square wave
- Resonant frequency: 6.8 ± 0.5 KHz
- Resonant Impedance: 300Ω maximum
- Capacitance at 100Hz: 15000pF ± 30%
- Dielectric loss: ≤ 5%
- Insulation Resistance: ≥100 at 25V DC
-
BG3020
- Size: Ø30mm
- Material: Brass plated + Ceramic
- Rated voltage: 12Vp-p square wave
- Operating voltage: 30Vp-p square wave
- Resonant frequency: 3.0 ± 0.5 KHz
- Resonant Impedance: 250Ω maximum
- Capacitance at 100Hz: 20000pF ± 30%
- Dielectric loss: ≤ 5%
- Insulation Resistance: ≥100 at 25V DC
-
BG2720
- Size: Ø27mm
- Material: Brass plated + Ceramic
- Rated voltage: 12Vp-p square wave
- Operating voltage: 30Vp-p square wave
- Resonant frequency: 4.0 ± 0.5 KHz
- Resonant Impedance: 200Ω maximum
- Capacitance at 100Hz: 28000pF ± 30%
- Dielectric loss: ≤ 5%
- Insulation Resistance: ≥100 at 25V DC
-
BG2215
- Size: Ø22mm
- Material: Brass plated + Ceramic
- Rated voltage: 12Vp-p square wave
- Operating voltage: 30Vp-p square wave
- Resonant frequency: 6.0 ± 0.5 KHz
- Resonant Impedance: 300Ω maximum
- Capacitance at 100Hz: 15000pF ± 30%
- Dielectric loss: ≤ 5%
- Insulation Resistance: ≥100 at 25V DC
